Pyramid Event

Configure a Pyramid event to schedule and distribute a publication, or schedule and execute a master flow or data model. With the Pyramid Event node selected, find and select the required publication or model from the content tree in the Properties panel. Choose the required schedule, or create a new schedule. When this node is executed in the master flow, the schedule will run.

Create a Pyramid Event

To create a Pyramid event, connect the Pyramid Event node to the Master Flow. With the node selected, configure its properties.

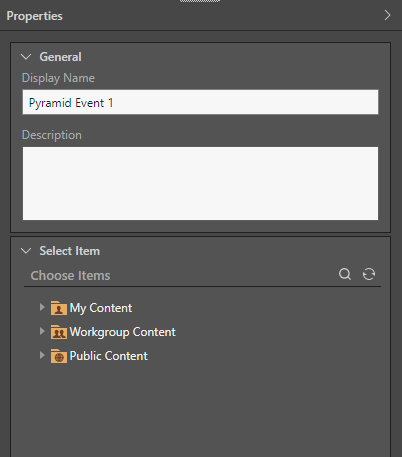

Pyramid Event Properties

Display Name

The name of the REST API node. By default, the node will be called 'REST API 1', 'REST API 2', and so on. You can change the node name from this field.

Description

You can add a description to the node; this can be a useful way of documenting the node for yourself and other users.

Select Item

Navigate the folder tree to locate the model or publication that you want to schedule. Once selected, click 'New Schedule' to open the scheduling panel.

Schedule

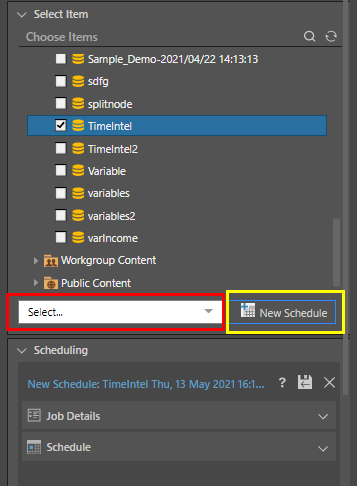

Once you select a model or publication, you can choose an existing schedule from the drop-down list (red highlight below). This list will expose any existing schedules for the selected item. To create a schedule, click New Schedule (yellow highlight).

  • Click here to learn how to schedule a model.
  • Click here to learn how to schedule a publication.

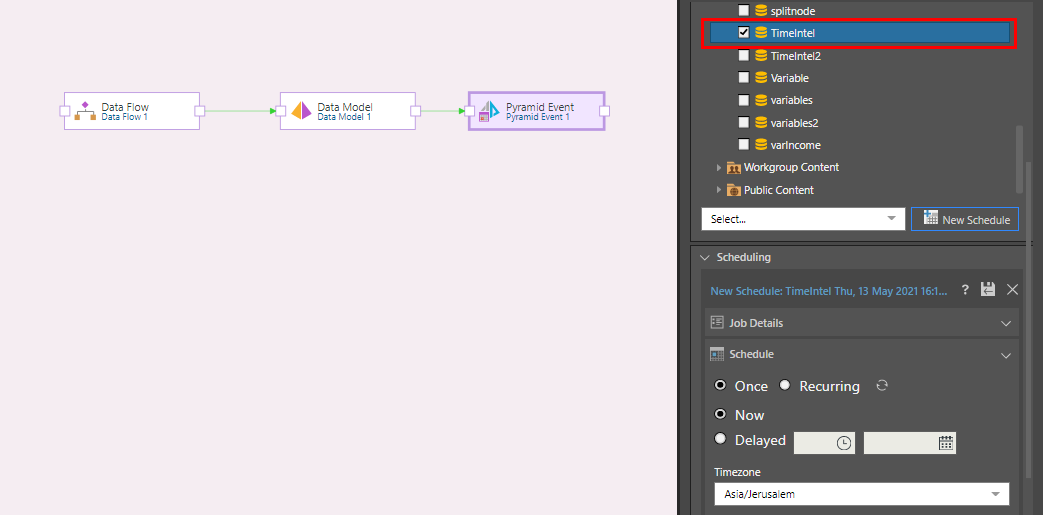

Example 1. Schedule a Model

In this example, the Pyramid Event will trigger the schedule for the 'TimeIntel' model:

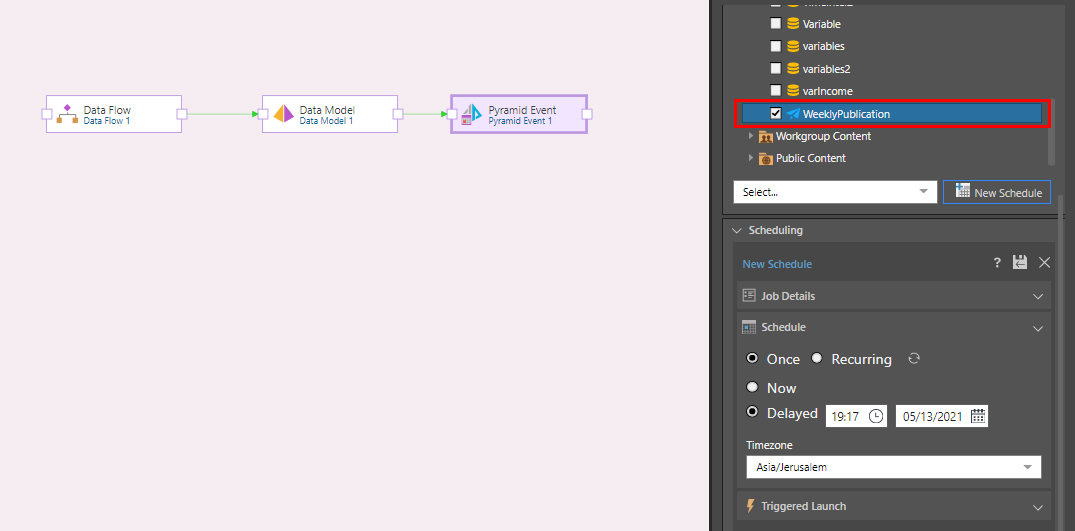

Example 1. Schedule a Publication

In this example, the Pyramid Event will trigger the schedule for 'WeeklyPublication'.
